Mashima & Other Motors

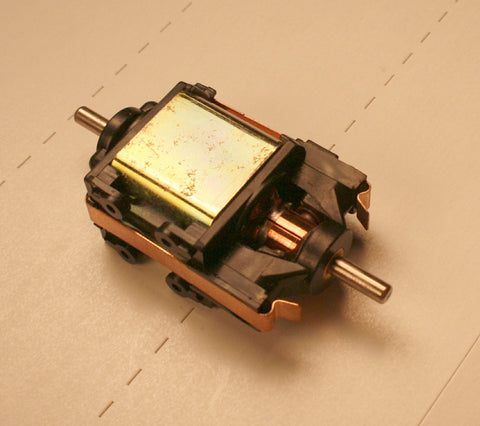

High quality 12 volt, double shaft Mashima motors are the choice of performance oriented modelers for their repowering needs. Mashima Can Motors offer an excellent fit in most locomotives with two sizes available. The 5 pole, skewed armature is the key to smooth, quiet, low speed operation (as low as 2 scale mph) as well as increased torque and power. Low current draw allows multiple unit operation without overloading most power packs as well as excellent compatibility with advanced command control systems. Choose a matching flywheel set from A-Line's comprehensive assortment of Precision Machined Brass Flywheels. The shorter body #40322 motor is also excellent for repowering many HO scale steam locomotives.

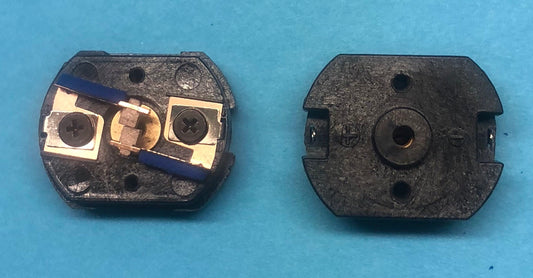

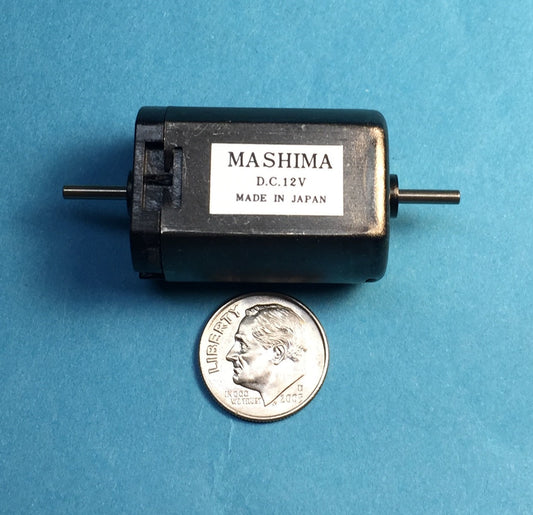

Note the #40321 - 1833 motor and the #40322 - 1824 motor are only available in a repowering kit with Hex flywheels.  (See Re-powering kits link below)

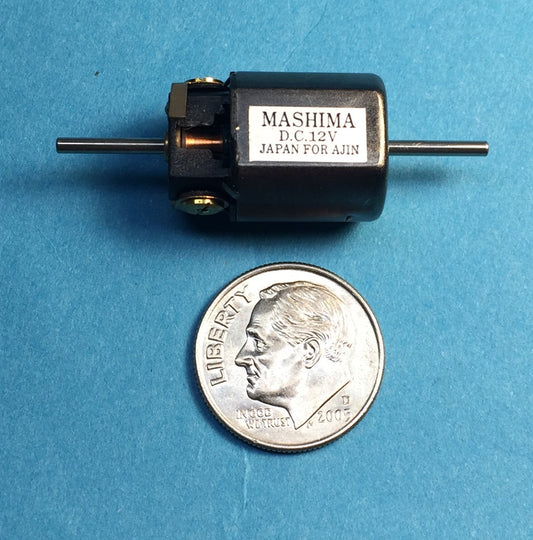

The new Mashima motors (40323 & 40324) have the same great features as our original motors.   They have excellent torque, power and low speed characteristics. They are great for narrow gauge locos, N-Scale and many other applications where smaller size is important.

MOTOR SPECIFICATIONS
Item # Length (mm) Width (mm) Height (mm) Speed (rpm) Current (ma) Shaft (mm)
40321 33 18 23 8,500 90 2.0
40322 24 18 23 9,200 80 2.0
40323 20 12 14 17,000 50 1.5
40324 30 13 16 11,000 70 2.0

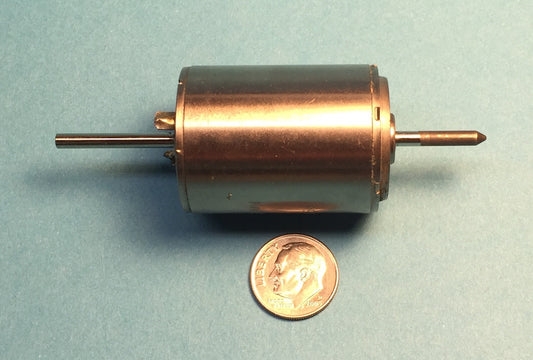

30321 40 29 -- 3,700 48 3.0

All motors are rated @ 12 VDC   (Conversion Factor 1 mm X .04 = inches)

See Our Other Repowering Parts
